Choose From Sixteen Computer Cart Options.  Select the Computer Cart Best For You.  Same day proposals.


Now you can use the same console workstations to accommodate multiple configurations. Choose from options for flat panel or traditional monitors, space-saving reduced depth workstations, and slat wall consoles.

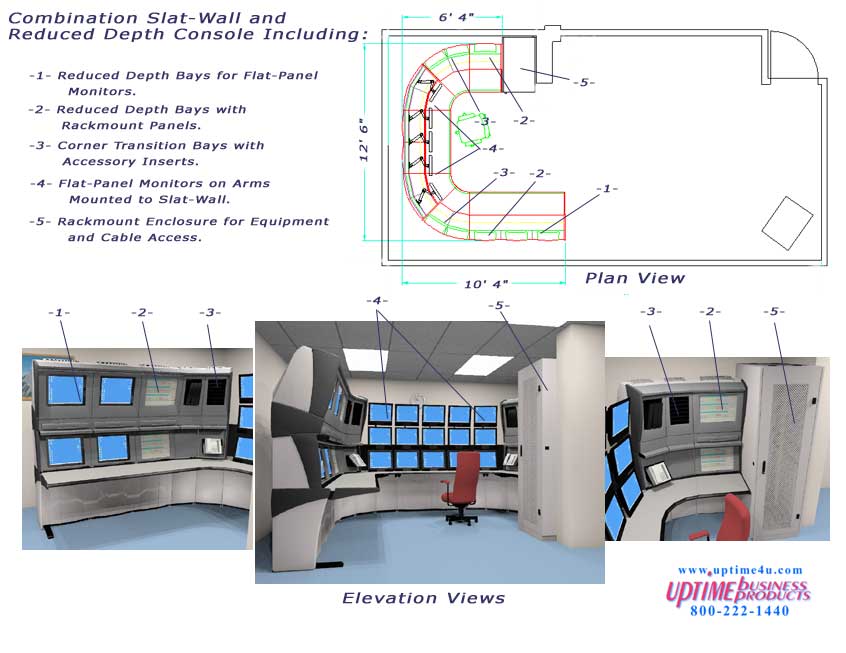

The images below will give you an idea of the possibilities, including a 'U' shaped combination layout with a total of 19 flat panel monitors, 8 rack mount panels and 8 accessory compartments all in a 12' 6" x 10' 4" footprint!

For More Information or Same Day Quotes
Call Us At 800-222-1440 or
Use Our Request Information Form

Click Here for our Strata design guide (*.pdf format 819 KB).

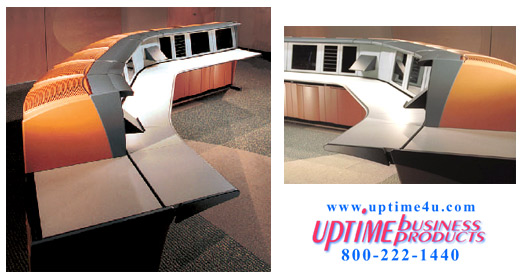

You can have a traditional console layout...

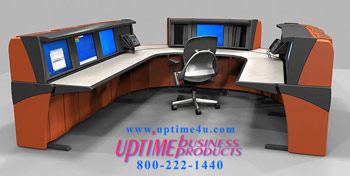

...or configure a reduced depth, flat screen layout...

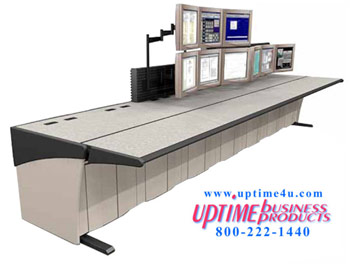

...or use our slat-wall, flat panel option...

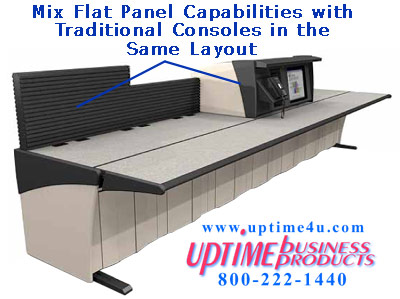

...or mix-and-match.
All with the same product, either for your initial configuration or re configured as your needs change.

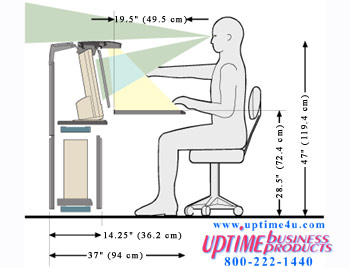

Comparison of reduced depth and full depth consoles.

Dimensions:

  • Depth: 37" (94 cm)
  • Console Height: 47" (119.4 cm)
  • Worksurface Height: 28.5" (72.4 cm)

Monitor Space

  • Fits most 21" (533 mm) flat panel LCD monitors

Processor Height:

  • Max. processor height on fixed shelf: 19.75" (502 mm)
  • Max. processor height on adjustable self: 19.25" (489 mm)

Processor Space:

  • Max. processor width: 11.25" (286 mm)
  • Max. processor depth on fixed shelf/rackmount base: 18.5" (470 mm)
  • Max. processor depth on swing-out shelf: 17.75" (450 mm)
  • Max. processor width on swing-out shelf: 8.5" (215 mm)
  • Max. processor height on swing-out shelf: 19.5" (495 mm)

Rackmount Space (Std. 19" - 483 mm rackmount)

  • Equipment front: 8 RU (14" - 356 mm)
  • Lower: 9 RU (15.75" - 400 mm)

Dimensions:

  • Depth: 48" (121.9 cm)
  • Console Height: 47" (119.4 cm)
  • Worksurface Height: 28.5" (72.4 cm)

Monitor Space

  • Fits most 21" (533 mm) flat panel LCD monitors

Processor Height:

  • Max. processor height on fixed shelf: 19.75" (502 mm)
  • Max. processor height on adjustable self: 19.25" (489 mm)

Processor Space:

  • Max. processor depth per fixed shelf: 22.25" (565 mm)
  • Max. processor depth per adjustable shelf: 17.75" (450 mm)
  • Max. processor width per fixed shelf: 17.5' (445 mm)
  • Max. processor width per adjustable shelf: 16" (406 mm)

Rackmount Space (std. 19" - 483 mm rackmount)

  • Equipment front: 8 RU (14" - 356 mm)
  • Lower: 9 RU (15.75" - 400 mm)
  • Distance between rails for 4-point rackmount: 17.75" (450 mm)
