Media Cabinets make it easy to store magnetic media,
reports, supplies, manuals, microfilm, and more in one centralized location.
With 1/4" component adjustability and a variety of heights and
options, you can configure exactly the cabinet you need.
Special steel door constructions offers excellent security.
'Clam shell' opening means the door opens for the middle of the cabinet
eliminating bending down to open and addressing ADA requirements.
False back in cabinet conceals the door when open.

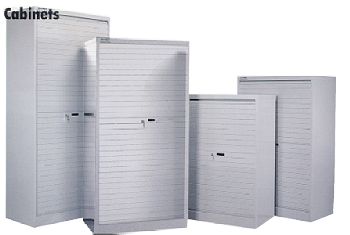

Four sizes to choose
 |
72" unit
72"h x 36"w x 22"d outside
64"h x 34"w x 18"d inside
83" unit
83"h x 36"w x 22"d outside
76"h x 34"w x 18"d inside |
51" unit
51"h x 36"w 22"d outside
44"h x 34"w x 18"d inside
60" unit
60"h x 36"w x 22"d outside
52"h x 34"w x 18"d inside |
|
Component |
Part Number |
Description |
Capacity |
| Tape Hanger Bar |
EDP100100 |
Hanger bar holds reel tape in seals or ez-load
cartridges |
Holds 35 reels per
hanger bar, requires 9-13" of cabinet height depending on
reel diameter. |
| Bars for media pacs |
EDP100106 |
Holds three molded media pacs designed
for specific media. Each bar holds three packs. |
- Optical disk 10/pac
- TK and DLT 7/pac
- 4 mm tape 10/pac
- 8 mm tape 10/pac
- Magstar 10/pac
|

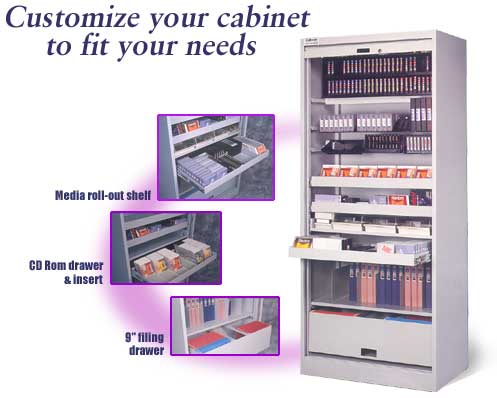

| Media Roll-out shelf |
EDP100102 |
Includes 8 front to back dividers
and 9 compressors for each row. |
- DLT 6 rows of 11 = 66
- 3480 6 rows of 14 = 84
- 3570 Magstar 5 rows of 23 = 115
- 4 mm 9 rows 0f 23 = 207
- 8 mm 6 rows of 17 = 102
- CDR 5 rows of 25 = 125
- DC2000 9 rows of 17 = 153
- DC600 4 rows of 15 = 60
- 3.5 diskettes 9 rows of 110 = 990
- VHS 4 rows of 11 = 44
|
| CD-ROM drawer |
EDP100109 |
Each drawer has slots
for each CD. The CD's tilt to allow easy viewing. |
|
| 9" Filing Drawer |
EDP100103 |
Drawer designed to hold either letter of legal
hanging files. |
|
| 12" Filing Drawer |
EDP100111 |
Deeper variation of
9" drawer. |
|
| Bars for file drawers |
EDP100104 |
Two bars for the file drawers above. |
|
| Roll-out shelf |
EDP100108 |
Shelf measures 32"w x 17"d x 3"h.
Ideal doe laptops, boxes of paper or printout. Hint locate
a roll-out shelf at the bottom of the cabinet for convenient access
to items stored. |
|
| Fixed shelf |
EDP100101 |
Store anything!! |
|
| Divider kit for fixed
shelf |
EDP100107 |
Five dividers plus
back plate. Ideal for ring binders or software documentation. |
|
| Reference shelf |
EDP100105 |
Serves as a work-surface and staging area. |
|
| Pad lock bar |
EDP100110 |
Remember the doors
are steel which means this bar with your pad lock offers secure
storage. |
|
Hint when configuring your cabinet locate the media
drawers (EDP100109 and 100102) in the middle of the cabinet between
waist and shoulder height for easy viewing. The media bars (EDP100106)
work well at eye level as does the fixed shelf with dividers.
A roll-out shelf at the bottom of the cabinet makes it easy to access
items without bending over. Put a reference shelf at waist height
to use to stage your work.
|
