SiteNet Integrator is a SNMP-compatible
monitoring system. SiteNet provides monitoring capability
for the Liebert UPS, two temperature and humidity sensors, up to
10 contact closure modules plus provides two programmable relays
which you can use to control external devices such as emergency
generators or connect to an independent security alarm system.
The Integrator also controls the Load Control Module for remote
re-boot and other load control functions (see below). Optional
points which can be monitored plus additional features are given
below:
- Internal temperature and humidity
- External temperature and humidity (two)
- Door ajar sensing
- Water detection
- Smoke detection
- Dual (redundant) power supply option
- Available for Ethernet or Token Ring
- Available in 120 (NEMA) or 230 (IEC)
volt versions
The Load Control Module provides remote
power management of connected loads. Features include:
- Controlled by the SiteNet integrator
- Controls up to 6 loads (outlets)
- Provides for remote reboot of locked
servers
- Available in 120 (NEMA) or 230 (IEC)
volt versions

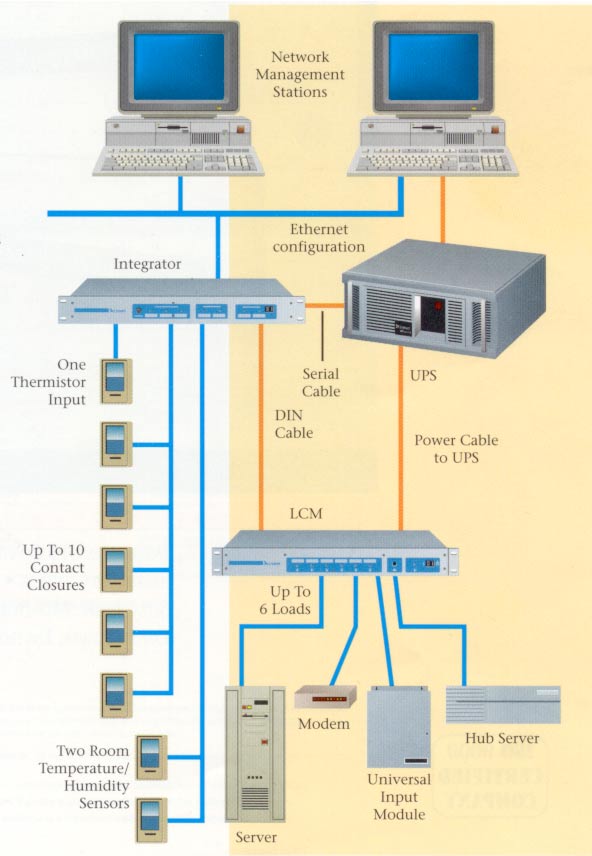

A schematic of the SiteNet Integrator
and Load Control Module is given below:
