Now you can have function, style and flexibility with the
Evans Strata console system
For More Information
Call us at 800-222-1440
or use our Request Information Form
Click Here to see our new reduced depth and slat-wall configurations.
Click Here for our Strata design guide (*.pdf format 819 KB).
|
|
|
|
Features:
- Strong aesthetic statement means your room has the look you want.
- Modular design gives you flexibility to meet your current requirements and lets you change your configuration as your needs change.
- Easy access to equipment and internal cable management makes for a clean, neat interior.
- Constructed with high performance structural polymer for strength, style and durability.
- Installer-friendly, easy-to-assemble components mean fast trouble free installations.
- Complies with ISO 9241 ergonomic standards for user safety and comfort.
- Available in standard 48" deep units plus reduced depth (37") versions for small rooms or other space saving requirements.
- Click here to see our ergonomic and human factors features.
|
|
|
|

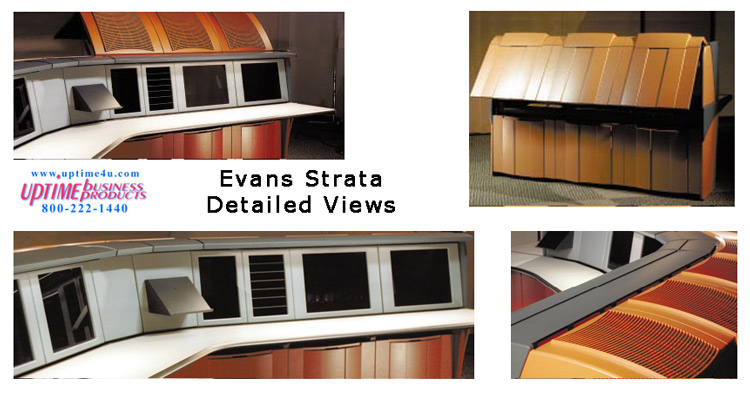

The images below give you a detailed view of the
Evans Strata system. Note in particular:

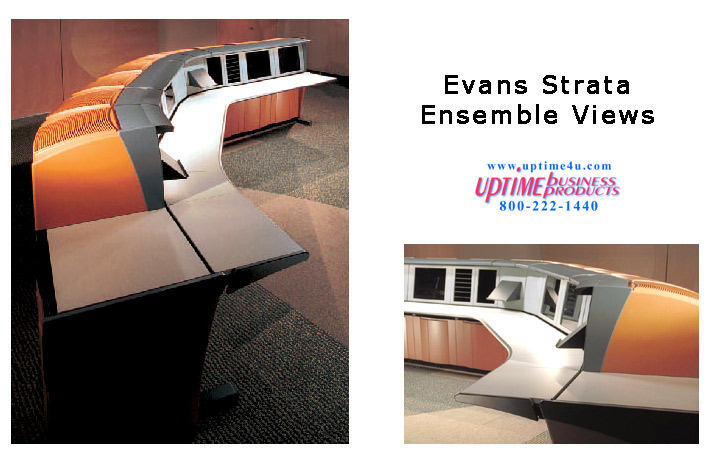

- The first two images show the Strata system with the top open (or opening). Note that the entire upper section of the console system is easily accessible for equipment installation and service.
- The bottom two images show close-up views. Note the phone holder, full sized monitor window plus the split window. Rack mount options, while not shown, give you added functionality.
|
 |
|

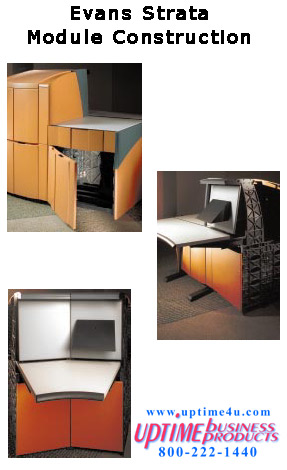

The images below show individual module details including:
- Rear view showing full section and desk level section. Note the rear door opens for complete access to installed equipment. Shelves and rack mount rails are available for this bottom area.
- End view showing internal structural construction.
- Close-up of our corner module. Note this module is stand-alone which means it can be installed as an end unit when your layout requires.
|
|
|
|
Dimensions and equipment capacities for the
Evans Strata system follow:
- Full depth console measures 48" from the front of the worksurface to the farthest outside surface of the rear door (37" for the reduced depth version).
- Console height is 47" preserving line of sight while seated at the console.
- The worksurface height is 28.5".
Monitor and Equipment Space:
- Full depth console fits most 21" monitors.
- Available height for monitor is 20.75".
- Maximum tower CPU height is 19.75" (on a fixed shelf) with upper monitor shelf installed and 19.25" when using an adjustable shelf.
- Equipment depth for the full depth console is 22.25" for a fixed shelf and 17.75" for an adjustable shelf. These dimensions for the reduced depth console are 18.5" and 17.75".
- Equipment width for the full depth console is 17.5" for a fixed shelf and 16.0" for an adjustable shelf.
Rackmount Space:
- Upper level equipment front is 8 RU (14").
- Lower equipment rackmount is 9 RU (15.75").
- Front to back space for rack mount equipment in the bottom of the full depth console is 17.75".
Console Finishes:
- Forty finish colors are available (please request color samples), plus you can have the base of the strata console a different color from the top giving you the ability to create the look best for you and your facility. Ask our staff to prepare an image showing the best color combination for you.
- All worksurfaces are covered with WilsonArt Dove Moraine laminate to reduce eye strain and visual distraction.
|

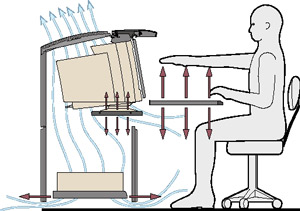

Human Factors and Ergonomics
|
|
|
|
Ventilation:
- Keeps the computer equipment cool and well functioning thereby reducing maintenance costs and extending the life of the equipment.
Adjustable Monitor Shelf:
- Allows for individual monitor adjustment to reduce neck stress.
Adjustable Worksurface:
- Each operator can set their worksurface height at the most appropriate level to reduce shoulder strain. Note this is an option, please be sure to ask our sales professional about this option.
Slide-out Shelf:
- Computer equipment is hidden for tidier looking workspace.
- Slide-out shelf allows easy access by the operator. No crawling underneath the console.
|

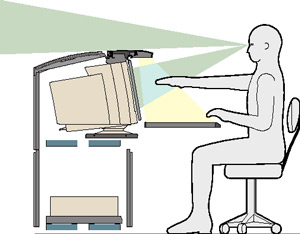

Sightlines:
- Equipment is built to allow the operator to see over the top of the console to a display wall, for example, without having to strain the neck.
- Monitor shelf adjustability permits the operator to maintain most appropriate sightline for personal comfort.
Anti-glare Glass:
- Reduces the glare from neighboring sources and therefore the onset of sore, dry, red eyes. Work is more enjoyable.
Accessory Placement:
- Each operator can place their phone shelf and binder storage where it is most efficient.
Cable Management:
- Cables are kept out of the way by being fastened inside the frame structure.
|
